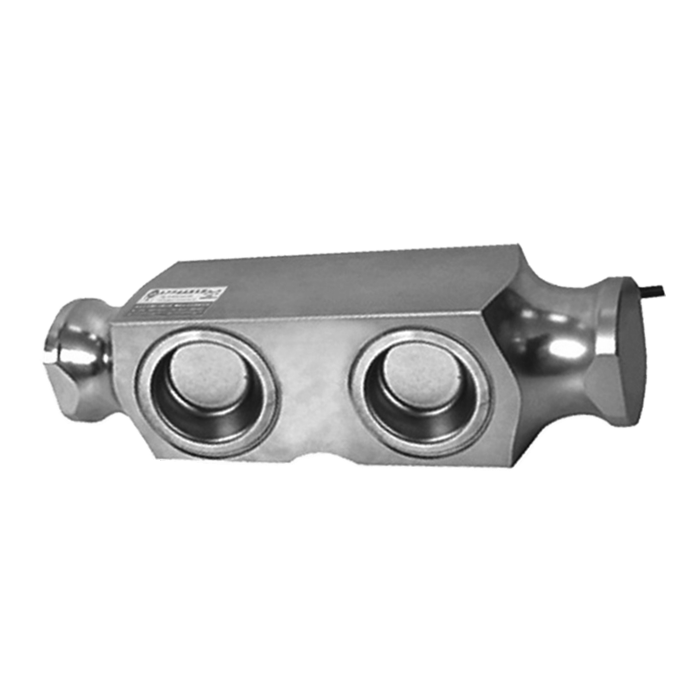

Double ended shear beam load cell GDEC
FEATURES:
◆Capacity: 25-125klb
◆Strong output signal
◆Fully welding sealed
◆High protection performacne
APPLICATION:
◆Truck scale
◆Hopper scale
+86-0574-87635363
info@geantec.com
FEATURES:
◆Capacity: 25-125klb
◆Strong output signal
◆Fully welding sealed
◆High protection performacne
APPLICATION:
◆Truck scale
◆Hopper scale

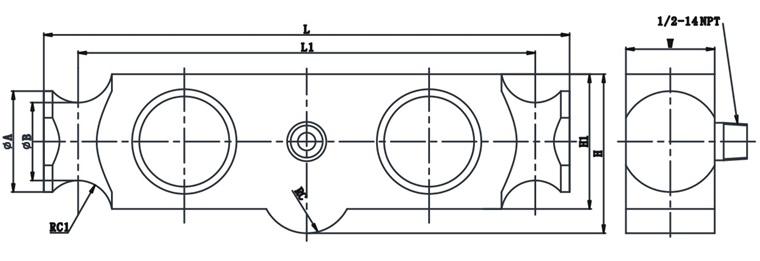

OUTLINE DIMENSIONS:
Rated capacity | L | L1 | W | H | H1 | A | B | C | C1 |
25-40klb | 209.6 | 184 | 49.3 | 75.5 | 62 | 50.8 | 41.4 | 12.7 | 12.7 |
50-75klb | 292.1 | 254 | 49.3 | 88.15 | 74.7 | 55.9 | 43.2 | 25.4 | 19.05 |
100-125klb | 368.3 | 318 | 73.7 | 118.9 | 98 | 81.3 | 62 | 38.1 | 25.4 |
SPECIFICATION:
PARAMETER | VALUE | PARAMETER | VALUE |
Rated capacity: | 25-125klb | Operating temperature range: | -30 ~ +70℃ |
Rated output: | 3.0±0.003mv/v | Maximum safe overload: | 150% F.S |
Combined error: | ±0.05% F.S | Ultimate safe overload: | 200% F.S |
Non-repeatability: | ±0.02% F.S | Recommended Excitation: | 10 ~ 12V DC |
Non-linearity: | ±0.05% F.S | Maximum Excitation: | 15V DC |
Hysteresis error: | ±0.05% F.S | Environment protection: | IP68 |
Zero balance: | ±1% F.S | Input impedance: | 750±10Ω |
Creep error(30minutes): | ±0.03% F.S | Output impedance: | 702±5Ω |
Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
Compensated temperature range: | -10 ~ +40℃ | Cable : | length 12m/16m, diameter 6mm |
