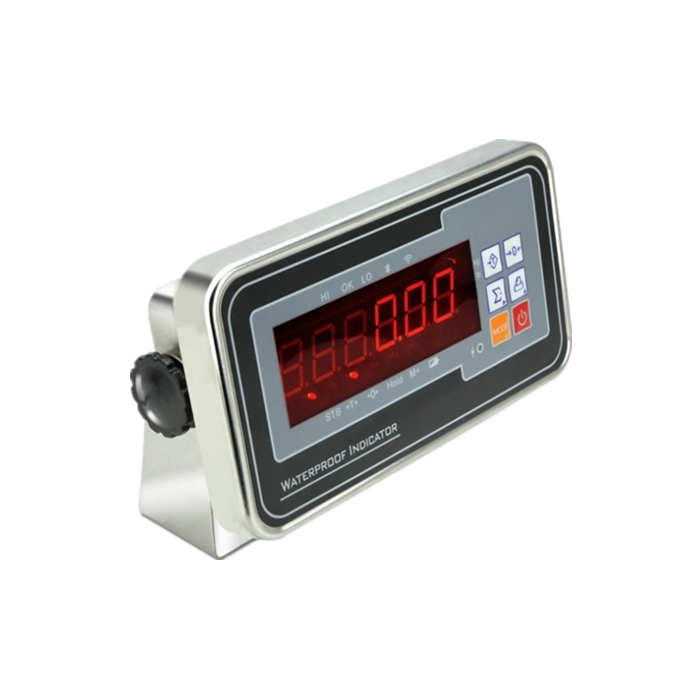

Analog/digital weighing indicator G40-H1061

Features:

Stainless steel housing, waterproof panel;

IP68 waterproof level, dustproof and moisture proof;

LCD or LED display;

Applications:

Applicated in industrial weighing, construction machinery, mobile terminal, platform scale and floor scales.

Electronics

SPECIFICATION:

Power supply	12VDC adapter, 6V/4.0Ah rechargeable battery, direct AC input optional
Load cell excitation	5VDC, 4×350Ω load cells
Input signal range	-5~15mv
Resolution	Internal resolution:300000 Display resolution:30000
Linearity	Within 0.01 % full scale
Display mode	6 digits,23mm height, LCD with back light or LED display
Weight unit	kg, lb, t, g, pcs
Status annunciator	Stable , Zero , Gross , Net , Charging
Keyboard	6 keys: ON / OFF, Tare, Zero, Mode, M+, MR
Operating temperature	-20~﹢65°C
Optional function	RS-232/485 , ModBus, Wireless communication, built-in Bluetooh connected with Mobile APP
Housing material	Stainless steel
Net weight	2.5kg
