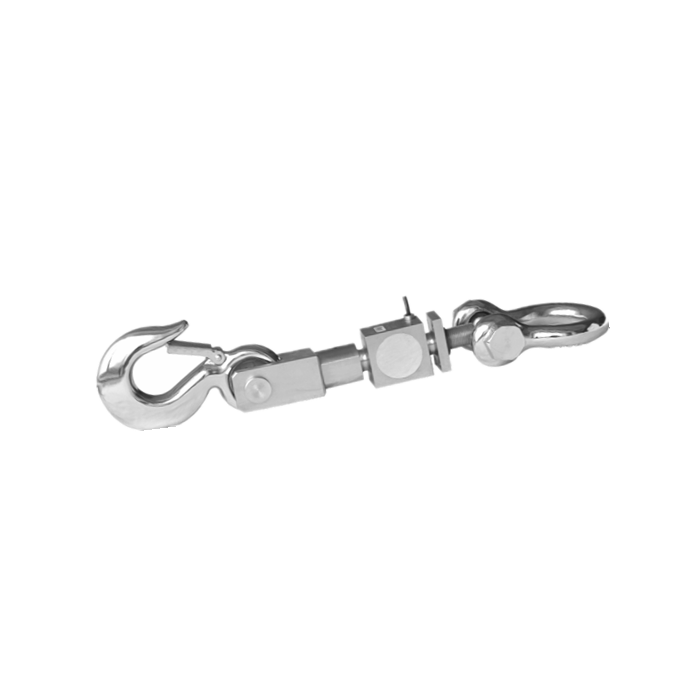

Customized tension load cell GGEB
FEATURES:
◆Capacity: 1-30t
APPLICATION:
◆Crane scale
Description

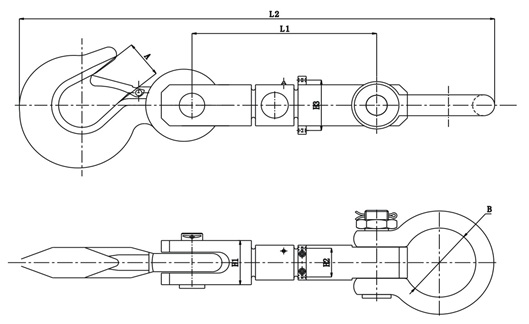

OUTLINE DIMENSIONS:
| Rated capacity | L1 | L2 | H1 | H2 | H3 | A | B |
| 1t | 265±5 | 582±10 | 50 | 20 | 42 | 38 | Ø68 |
| 2t | 265±5 | 582±10 | 50 | 26 | 42 | 38 | Ø68 |
| 3t | 285±5 | 680±10 | 60 | 34 | 50 | 38 | Ø74 |
| 5t | 336±5 | 716±10 | 75 | 34 | 58 | 41 | Ø74 |
| 10t | 385±5 | 815±10 | 93 | 36 | 68 | 53 | Ø92 |
| 15t | 450±5 | 940±20 | 102 | 44 | 72 | 57 | Ø98.6 |
| 20t | 412±5 | 960±20 | 92 | 52 | 76 | 75 | Ø127 |
| 30t | 451±5 | 1500±50 | 114 | 74 | 130 | 100 | Ø136 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 1-30t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 1.3±0.002mv/v(1t) 1.5±0.002mv/v(2-30t) |
Maximum safe overload: | 150% F.S |
| Ultimate safe overload: | 200% F.S | ||
| Combined error: | ±0.05% F.S | Recommended Excitation: | 10 ~12V DC |
| Non-repeatability: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Non-linearity: | ±0.03% F.S | Environment protection: | IP67 |
| Hysteresis error: | ±0.03% F.S | Input impedance: | 400±20Ω |
| Zero balance: | ±1% F.S | Output impedance: | 352±3Ω |
| Creep error(30minutes): | ±0.02% F.S | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Material: | alloy steel |
| Temperature effect on output: | ±0.02% F.S/10℃ | Cable: | length 0.5m(1-10t), diameter 5mm |
| Compensated temperature range: | -10 ~+40℃ | length 1m (15-20t), diameter 8mm |
