Compression canister/column load cell GCNC
FEATURES:
◆Capacity: 20-50t
◆Forcing with double end ball
◆Anti-rotating with six-edge design
APPLICATION:
◆Truck scale
Description

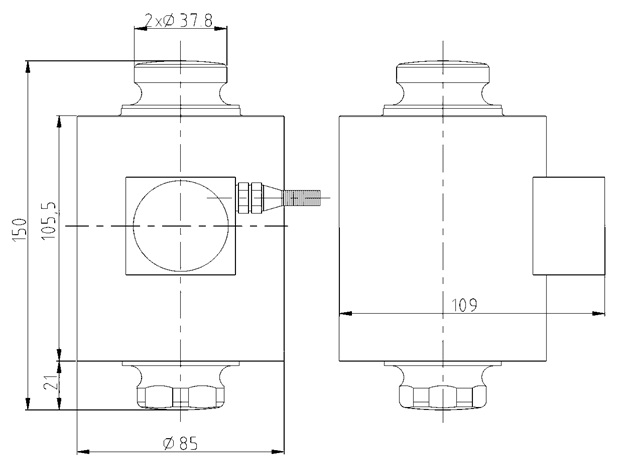

OUTLINE DIMENSIONS:
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 20-50t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.002mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.05% F.S | Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.03% F.S | Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.03% F.S | Environment protection: | IP68 |
| Zero balance: | ±1% F.S | Input impedance: | 1160±10Ω |
| Creep error(30minutes): | ±0.02% F.S | Output impedance: | 1005±5Ω |
| Temperature effect on zero: | ±0.02% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.02% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 12m(20-25t),14m(30t), 16m(40-50t) diameter 6mm |
