Compression canister/column load cell GCE
FEATURES:
◆Capacity: 20-500t
◆High sealing performance
APPLICATION:
◆Testing equipment
◆Professional weighing & testing equipment
Description

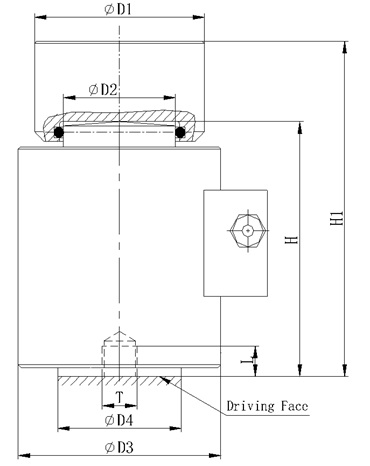

OUTLINE DIMENSIONS:
|
Rated capacity |
D1 | D2 | D3 | D4 | H | H1 | L |
T |
|
20t |
56 | 31.8 | 76 | 48 | 82.6 | 105.6 | 10 | M12 |
|
25t |
58 | 38 | 100 | 38 | 117 | 147 | 14 | M20 |
|
30t |
58 | 38 | 100 | 38 | 117 | 147 | 10 | M12 |
|
40t |
58 | 38 | 100 | 38 | 117 | 147 | 14 | M20 |
|
50t,60t |
88 | 58 | 107 | 64 | 127 | 167 | 14 |
M20 |
| 70t | 88 | 58 | 125 | 64 | 142 | 182 | 14 |
M20 |
| 100t | 98 | 70 | 165 | 70 | 184 | 234 | 20 |
M20 |
| 150t | 98 | 70 | 165 | 78 | 184 | 234 | 20 |
M20 |
|
200t |
129 | 100 | 223 | 112 | 250 | 340 | 36 | M24 |
| 300t,400t | 140 | 108 | 223 | 112 | 250 | 360 | 36 |
M24 |
| 500t | 160 | 115 | 223 | 120 | 300 | 380 | 36 |
M24 |
SPECIFICATION:
| PARAMETER | VALUE | PARAMETER | VALUE |
| Rated capacity: | 20-500t | Operating temperature range: | -30 ~ +70℃ |
| Rated output: | 2.0±0.002mv/v | Maximum safe overload: | 150% F.S |
| Combined error: | ±0.03% F.S(10-50t) ±0.05% F.S(60-100t) ±0.1% F.S(150-500t) |
Ultimate safe overload: | 200% F.S |
| Non-repeatability: | ±0.03% F.S | Recommended Excitation: | 10 ~ 12V DC |
| Non-linearity: | ±0.05% F.S(10-100t) ±0.1% F.S(150-500t) |
Maximum Excitation: | 15V DC |
| Hysteresis error: | ±0.03% F.S | Environment protection: | IP68 |
| Zero balance: | ±1% F.S | Input impedance: | 400±20Ω |
| Creep error(30minutes): | ±0.03% F.S | Output impedance: | 352±3Ω |
| Temperature effect on zero: | ±0.03% F.S/10℃ | Insulation resistance at 50V DC: | ≥5000MΩ |
| Temperature effect on output: | ±0.03% F.S/10℃ | Material: | alloy steel, stainless steel |
| Compensated temperature range: | -10 ~ +40℃ | Cable length: | length 12m(20t), 14m(25-40t), 16m(50-150t), 20m(200-500t); diameter Φ6mm(20t), Φ8mm(25-500t) |
