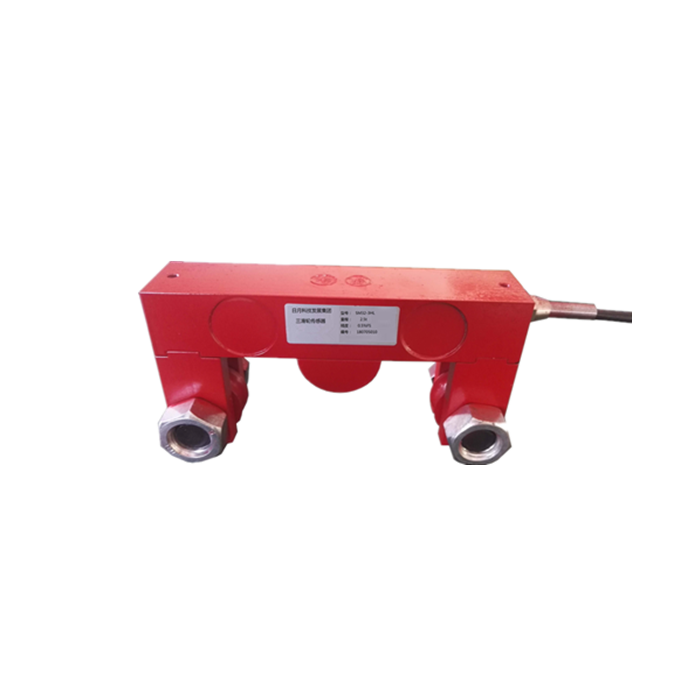

3 Roller tension sensor/transducer G40
FEATURES:
◆Capacity: 1.2~20 t
◆Tension structure
APPLICATION:
◆Lifting equipment
◆Aerial work vehicle
◆Medium and large sized crane
+86-0574-87635363
info@geantec.com
FEATURES:
◆Capacity: 1.2~20 t
◆Tension structure
APPLICATION:
◆Lifting equipment
◆Aerial work vehicle
◆Medium and large sized crane

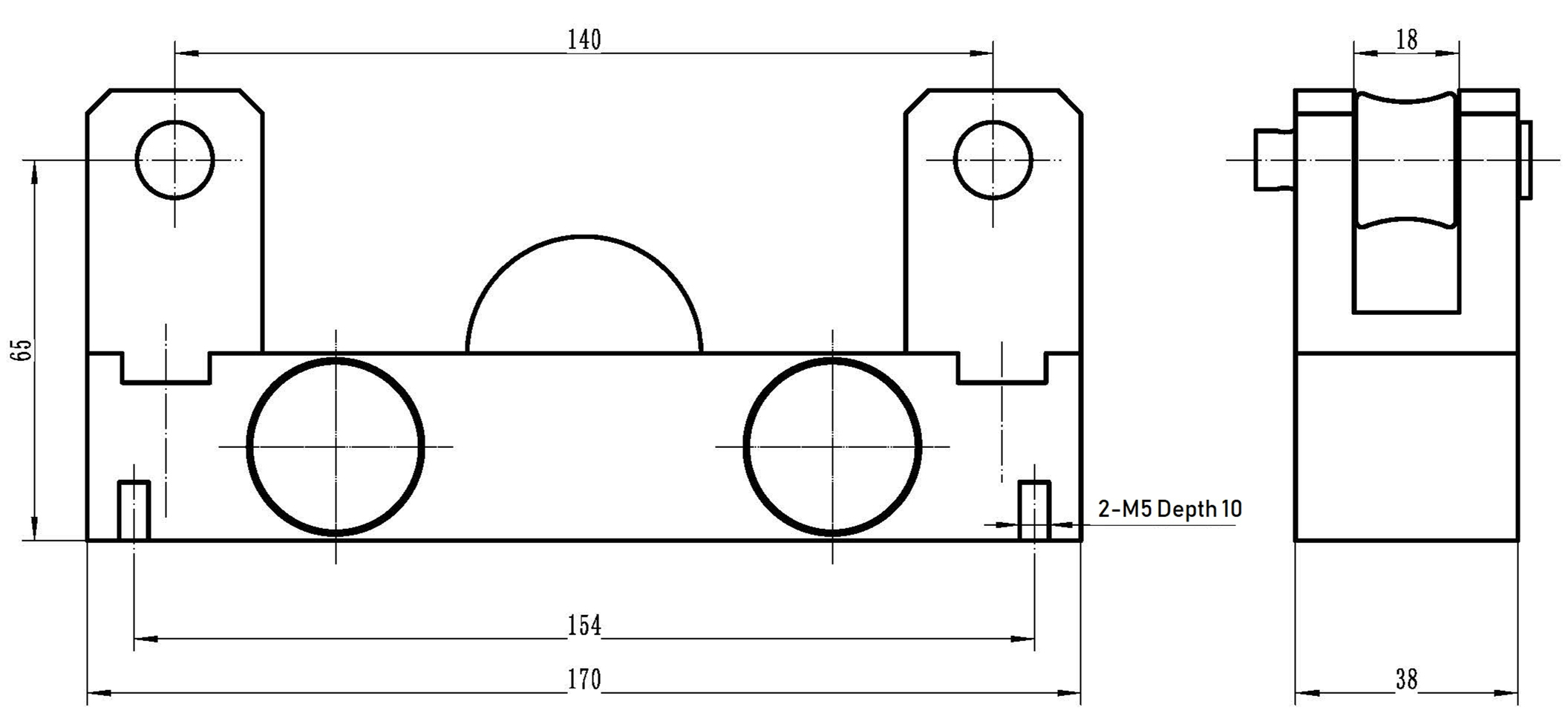

OUTLINE DIMENSIONS:
SPECIFICATION:
PARAMETER | VALUE | PARAMETER | VALUE | |
Rated capacity | 1.2~20 t | Operating temperature range | -40~+85℃ | |
Recommended Excitation | 24±12 VDC | Maximum safe overload | 200% FS | |
Current consumption | <100 mA | Ultimate safe overload | 300% FS | |

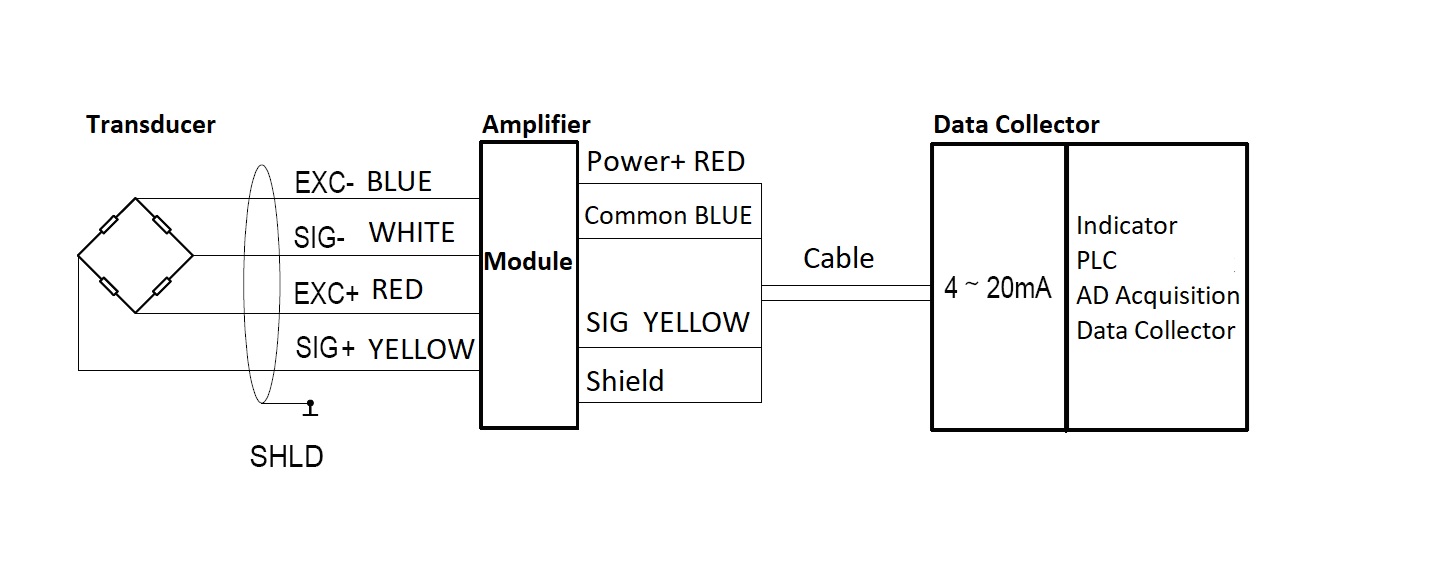

Dual signal output (choose one of three options) |
Analog output | 4~20mA | Material | alloy steel, stainless steel |
CAN Bus | CAN open, CAN open Safety |
Environment protection | IP67 | |
CAN Bus | CAN open, CAN open Safety |
Climate test | EN60068-2-30,DB55℃/100% | |
Combined error | 0.3%FS | Vibration resistance | EN60068-2-6,5-500Hz,50g,10mm | |
Temperature effect on zero | 0.1%FS/10℃ | Shock resistance | EN60068-2-27(half sine) 50g,11ms,1000shocks; 1000g,1ms,50shocks |
